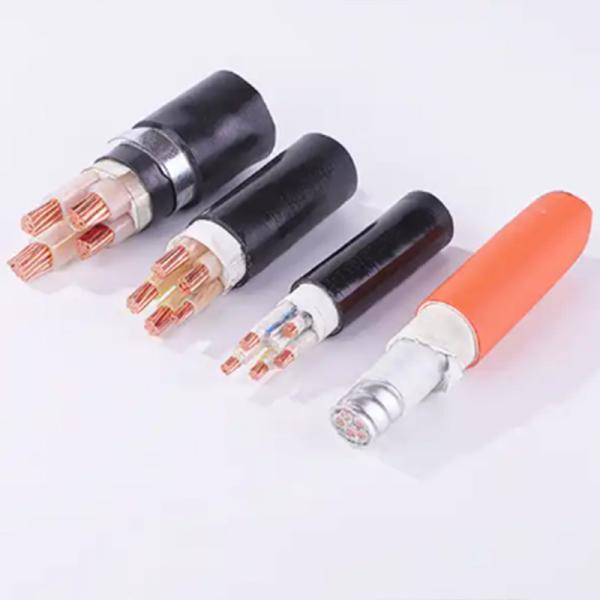

Mineral Insulated Cable Fire Insulation

Name: Mineral Insulated Cable Fire Insulation
Brand: Jiangnan
Price: 0.28 USD

Brand Name : Jiangnan

Model Number : BBTRZ

Certification : CE，CCC，SABS，TUV，RoHS

Place of Origin : Jiangsu China

MOQ : 1000 Meters

Price : $0.28/meter

Supply Ability : 50000meters<7days

Packaging Details : Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)

Application : fireprofing

Conductor Type : Solid

Model : BBTRZ

MOQ : 1000 Meters

Jacket : PVC Jacket

Brand : Jiangnan

Color : Customer's Requirement

Type : insulated, fireproof cable

Conductor Material : Copper

Insulation Material : PVC

Conductor : copper

Keyword : fireproof cable,BBTRZ, mineral fire-proof cable

place of origin : Jiangsu,China

Sheath : PVC

Contact Now

Products Description

This product is suitable for fire control, fire linkage, fire alarm and fire protection power lines with a rated voltage of 0.6/1KV and below. It can withstand burning at 950°C for 3 hours under the working condition of 1000V load. The function of mechanical impact.

Mineral composite insulated aluminum sheath protection isolation flexible fireproof cable is a kind of high fireproof fireproof cable, which is filled or wrapped between the insulated core (outer diameter of the cable) and the sheath of the cable Halogenated mineral composites or ceramicized silicone rubber materials. When the cable is subjected to fire, the filling layer or the wrapping layer will quickly form a crust. The crust is very hard and dense. It will not melt, drip or fall off at 350-1600 °C with or without flame, and will not cause damage to the cable. Secondary fire can burn hard ceramic-like armor body, the higher the temperature and the longer the firing time, the harder the ceramic-like armor body will be. Good fire insulation, heat insulation, and temperature insulation effects achieve high-level fire resistance. At the same time, after being protected by a metal aluminum sheath, the ability of the cable to resist spraying water in a fire situation is greatly improved. It is a domestic flexible fireproof cable. The lowest cost, the strongest fire resistance, the most stable safety cable.

Product model and application

Product structure	Conductor + insulation .Flexible mineral insulated cable is composed of copper stranded wire, mineral compound insulation, and mineral compound sheath.
Certification	CCC
Voltage	Low voltage
Working Temperature	Protocol C Resistance to fire alone 950 °C for 3 h. Protocol W Resistance to fire with water 650 °C for 15 min. Protocol Z Resistance to fire with mechanical shock 950 °C for 15 min.
Certification	ISO9001, ROHS, CCC
Packaging	The cables will be packaged in paper/wooden reels /containers or pallet according to customer's requirement.
Application	Domestic outfit distribution, urban power distribution, engineering power distribution
Delivery Port	shenzhen,guangdong,hangzhou
Specifications	Specifications:1-5 cores, 3+1 cores, 3+2 cores, 4+1 cores (2.5 square to 240 square)

Product Details

More Models

Application

More Products

Exhibition

FAQ

1.When can I get the price? We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority. 2.How can I get a sample to check your quality? After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid. 3.How long can I expect to get the sample? After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.  4.What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
